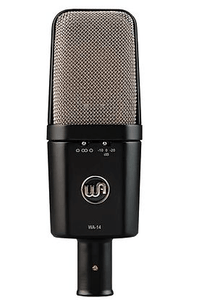

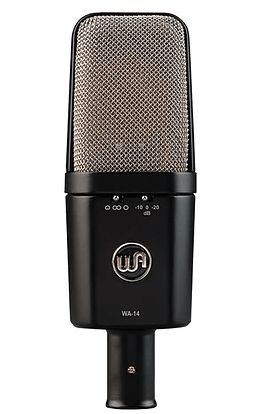

Warm Audio WA-14 Condenser Microphone

  • $399.00
    Unit price per
Tax included.


The WA-14 is a classic condenser microphone based on the early 1970's microphone used on countless hit records. The WA-14 utilizes a custom all-brass CK12-style capsule, CineMag USA transformer, and a fully discrete signal path. The WA-14 can be used on an array of sources, such as; punchy/warm intimate lead vocals, acoustic/electric guitars, bass, drums/percussion, strings/orchestral material, and many other sources. The WA-14 provides a realism and thickness that is true to the vintage microphone, but now at an affordable price.

The WA-12-B-60V is an all-brass, edge-terminated capsule that captures all the smoothness, rich top end, and warm vintage sonics of the original CK12 capsule. The WA-12-B-60V uses a variant CEK-12 back plate as a basis, which overcomes manufacturing limitations of the original CK12 capsule. The o-ring and housing of the WA-12-B-60V are all made from brass (no teflon parts), and the diaphragm is 24k gold sputtered 6 micron, NOS PET film (mylar). The end result is a very consistent, reliable capsule which matches the frequency response and tonality of the classic 1970's classic capsule.

Technical Specifications
Download Product Manual
Large Diaphragm Condenser Microphone With Variable Pad And Three Polar Patterns (Cardioid, Figure Of Eight, Omnidirectional)
Custom CineMag USA Transformer
Frequency Range: 20Hz To 20kHz
Output Pad: 0dB, -10dB, -20dB
Polar Patterns: Cardioid, Figure Of Eight And Omnidirectional
Output Impedance: 150 Ohms
Features Custom WA-12-B-60V Edge-Terminated, Dual-Backplate, All-Brass Vintage CK12-Style Capsule
3-Pin Gold Plated XLR
Self Noise: -115dB
Requires +48V Phantom Power
Color: Black

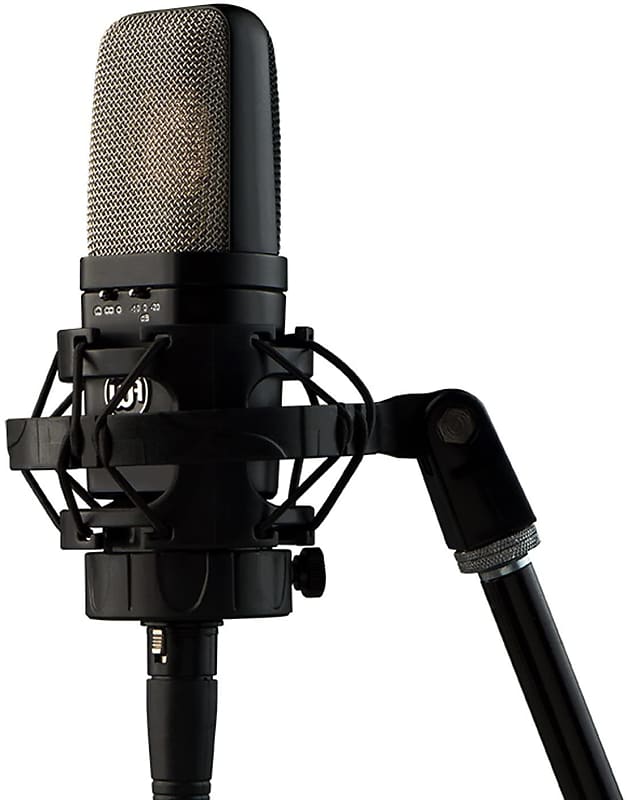

Includes Shock Mount, Hard Mount, And Protective Pouch
