Warm Audio WA-84 Premium Stereo Package Small Diaphragm Condenser Microphone
WA-84 Premium Stereo Package: Featuring Cardioid And Omni Capsules
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 Premium Stereo Package with Cardioid and Omni Capsules features a fully discrete Class A design that utilizes CineMag USA transformers, polystyrene and Wima capacitors and Fairchild FETs. The WA-84 Premium Stereo Package with Cardioid and Omni Capsules is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.
The WA-84 Premium Stereo package includes 2 microphones with Cardioid and Omni Capsules that have a very LARGE sound for their small size. Thes WA-84's uniquely use heavy Nickel CineMag transformers in their signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound.
We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is circuits that we feel sound absolutely gorgeous and go the extra mile in terms of signal integrity and smooth boutique tone.
Technical Specifications
UTILIZES CINEMAG USA TRANSFORMERS
DIRECTIONAL PATTERNS: CARDIOID & OMNI
FULLY DISCRETE VINTAGE-STYLE SIGNAL PATH
VINTAGE CAPSULE REPRODUCTIONS

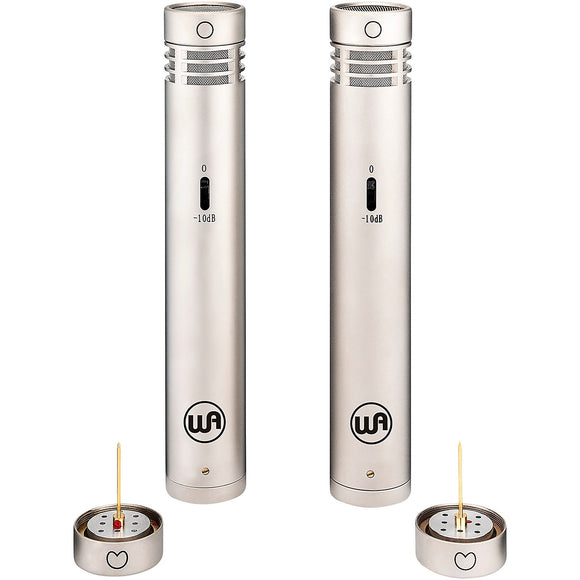

PACKAGE INCLUDES: 2X WA-84 MICROPHONES, 2X CARDIOID CAPSULES, 2X OMNI CAPSULES, 2X SHOCK-MOUNTS, 2X MIC CLIPS, 2X WINDSCREENS AND A CARRYING CASE
48V PHANTOM POWERED
FREQUENCY RANGE: 20HZ - 20KHZ
SENSITIVITY: -39DB OR 11MV/PA @ 1KHZ
OUTPUT IMPEDANCE: 200Ω
RATED LOAD IMPEDANCE: ≥1KΩ
PAD: 0DB OR -10DB
MAXIMUM SPL: 123/133DB @ 1KHZ, 0.5% THD, 0/-10DB
S/N RATIO: 78DBA (IEC651)
EQUIVALENT NOISE: 16DBA (IEC651)
DYNAMIC RANGE: 107DBA (IEC651)
CONNECTOR: 3-PIN GOLD-PLATED XLR
WEIGHT: 122G EACH
FINISH: NICKEL
